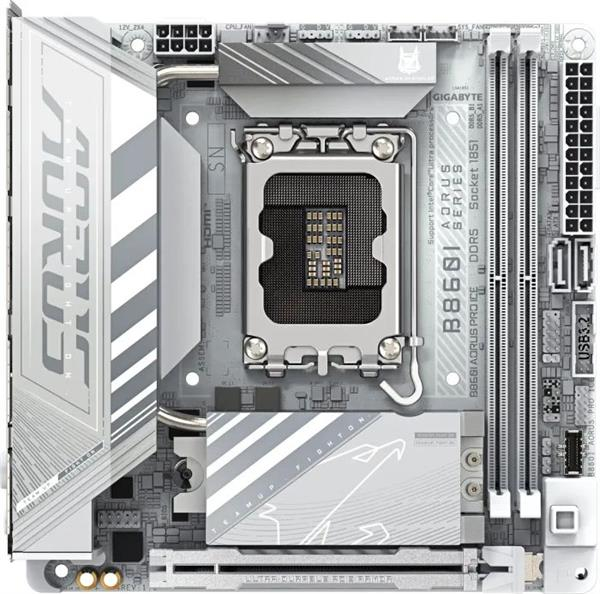

GIGABYTE B860I AORUS Pro ICE/S1851
Formfaktor: ATX
Sockel: Intel 1851 (LGA1851)
Chipsatz: Intel B860
CPU-Kompatibilität: Core Ultra 200S
RAM-Slots: 4x DDR5 DIMM, Dual Channel, UDIMM (Non-ECC)/CUDIMM, max. 256GB (UDIMM), 256GB (CUDIMM)
RAM-Taktfrequenz OC: max. DDR5-9066
RAM-Taktfrequenz nativ: DDR5-5600 UDIMM/DDR5-6400 CUDIMM (Core Ultra 200S)
ECC-Unterstützung: nein
Anschlüsse extern: 1x HDMI 2.1 (HDCP 2.3, iGPU), 1x DisplayPort 2.1 (iGPU), 1x USB-C 3.2 (20Gb/s), 1x USB-A 3.1 (10Gb/s), 4x USB-A 2.0 (480Mb/s), 1x RJ-45 LAN (2.5GBase-T, Realtek), 3x 3.5mm Klinke (Realtek), 3x PS/2 Combo, 2x Antennenanschluss Quick Connect
PCIe-Slots: 1x PCIe 5.0 x16, 4x PCIe 4.0 x16 (x1)
M.2-Slots: 1x M.2/M-Key (PCIe 5.0 x4, 25110/2580/22110/2280), 1x M.2/M-Key (PCIe 4.0 x4, 25110/2580/22110/2280), 1x M.2/E-Key (2230, belegt mit WiFi+BT-Modul)
Sonstige Schnittstellen: 4x SATA 6Gb/s (B860)
Anschlüsse intern - USB: 1x USB 3.0 Header Key-A (5Gb/s, 1x USB-C 3.0), 1x USB 3.0 Header 20-Pin (5Gb/s, 2x USB-A 3.0), 2x USB 2.0 Header 9-Pin (480Mb/s, 4x USB-A 2.0)
Anschlüsse intern - sonstige: 1x TPM-Header, 1x S/PDIF-Header, 1x seriell-Header
Anschlüsse intern - Kühlung: 1x CPU-Lüfter 4-Pin, 1x CPU-Lüfter/Pumpe 4-Pin, 2x Lüfter 4-Pin, 2x Lüfter/Pumpe 4-Pin
Anschlüsse intern - Stromversorgung: 1x 24-Pin ATX, 1x 8-Pin EPS12V
Anschlüsse intern - Beleuchtung: 1x 4-Pin RGB (+12V/G/R/B, max. 2A), 3x 3-Pin ARGB (+5V/DATA/GND, max. 3A, GIGABYTE Gen2)
Buttons/Switches: USB BIOS Flashback/Q-Flash Plus (intern)
Audio: Realtek
Grafik: iGPU
Wireless: Wi-Fi 6E (WLAN 802.11a/b/g/-c/ax, 2x2, Intel AX211), Bluetooth 5.3
Wireless (Variante 2): Wi-Fi 6E (WLAN 802.11a/b/g/-c/ax, 2x2, Realtek RTL8852CE), Bluetooth 5.3
RAID-Level: 0/1/5/10 (B860)
VRM-Design: 8+1+2, 9 virtuelle CPU-Phasen (8+1)
MOSFETs VCORE: 8x
MOSFETs SOC/VCCGT: 1x
MOSFETs VDD_MISC/VCCSA/VCCAUX: 2x
Beleuchtung: -
BIOS: 1x 32MB (256Mb)
Info: Audio+solid capacitors, Diagnostic LED (LED-Indikatoren), 1x M.2-Passivkühler
Garantie: 3 Jahre (inkl. ab Produktionsdatum, Abwicklung über Fachhändler)
